Using the interactive schematic below, please find the parts you are looking for. Each schematic number is directly linked to that specific part in our shop for you to purchase. Please note that this schematic is in an Alpha Testing phase and there may be errors that we are working to correct.

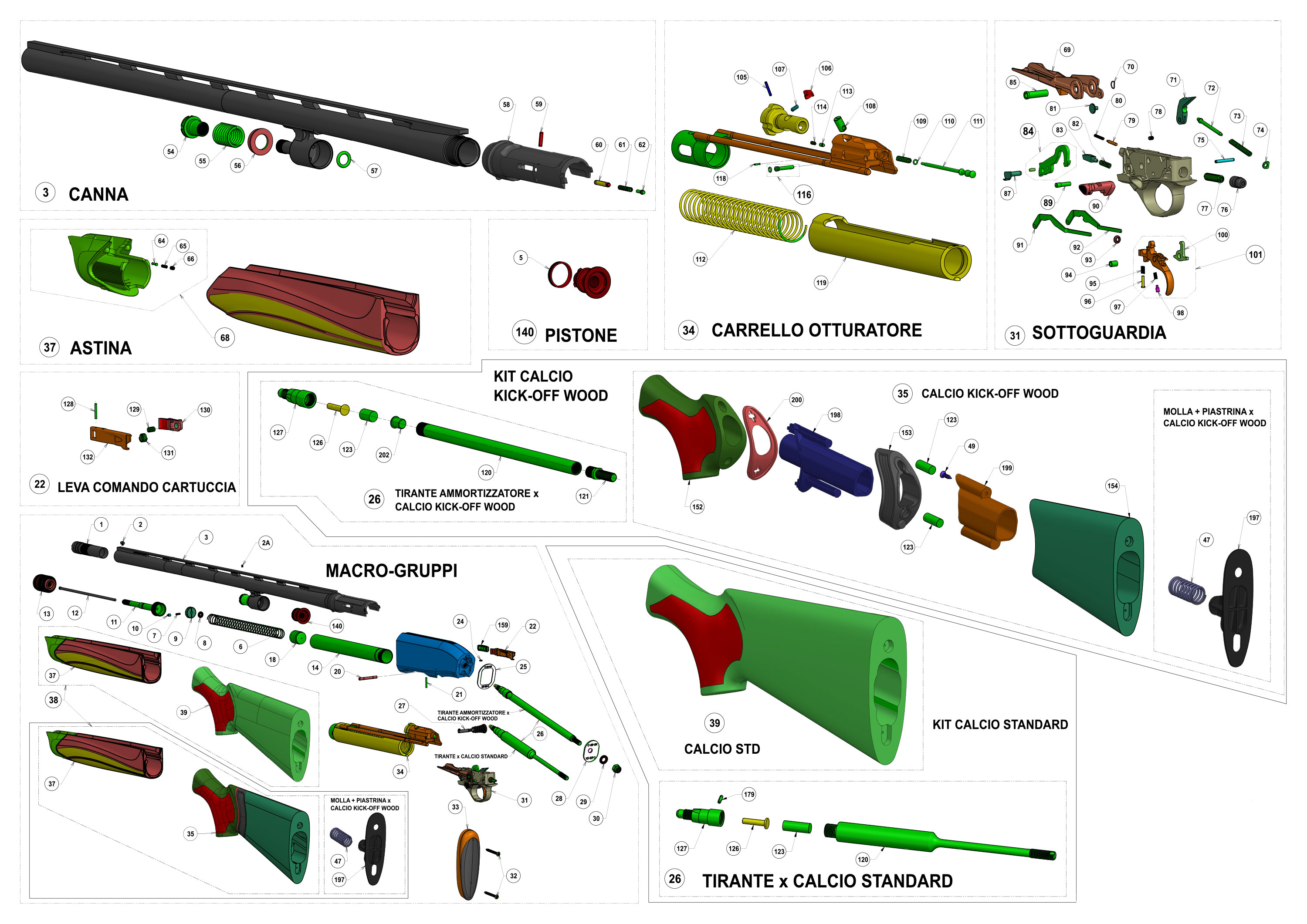

A400 XCEL Parts Schematic – 2022 Model
GAS VALVE NUT VALVE SPRING EXHAUST VALVE MOULDING O-RING BARREL EXTENSION O-RING EJECTOR PIN EJECTOR AMBIDEXTROUS EJECTOR SPRING EJECTOR SPRING GUIDE PIN TRIGGER SPRING PIN EJECTOR SPRING EXTRACTOR RIGHT RH DX COCKING HANDLE PISTON SPRING COCKING HANDLE PIN BREECH BOLT PIN FIRING PIN SPRING EJECTOR ADJUSTER O-RING FIRING PIN RECOIL SPRING SLEEVE RECOIL SPRING FIRING PIN RETAINING PIN SAFETY ELASTIC PIN FOREND FOREND COVER PIN FORE END COVER SPRING FOREND CAP SET SCREW FOREND COVER ASSY PISTON ASSY ELASTIC RING FOR PISTON CARTRIDGE LATCH ASSY WITH ENLARGED HOLD OPEN LEVER CARTRIDGE LATCH LEVER PIN NOT AVAILABLE CARTRIDGE LATCH LEVER SPRING CARTRIDGE LATCH BODY SPRING CARTRIDGE LATCH WITH HOLD OPEN SHOCK ABSORBER STOCK SCREW WITH SHOCK ABSORBER INSERT SOFT RUBBER FOR STOCK WITH KICK OFF PLUS PLATE REAR STOCK WITH KICK OFF PLUS STANDARD STOCK FOR BERETTA A400 XCEL - SPORTING TUBE ASSY PRO TRIGGER GROUP FOR 12GA. SEMIAUTO CARRIER BUSHING PRO ELEVATOR FOR SEMIAUTO RETAINING SPRING RING LEVER CARRIER ELEVATOR LEVER SPRING GUIDE ELEVATOR LEVER SPRING CARRIER SPRING WASHER ELASTIC PIN HAMMER SPRING HAMMER SPRING GUIDE STOP PIN TRIGGER ASSY CHROMED BLOCK PIN SPRING SPRING STOP TRIGGER SPRING GUIDE TRIGGER SPRING TRIGGER BUSHING HAMMER STRUT BUSHING RIGHT HAMMER BRACE LEFT HAMMER BRACE SAFETY AMBIDEXTROUS TRIGGER PIN HAMMER PIN HAMMER ASSY CARRIER CATCH PLUNGER CARRIER CATCH PLUNGER SPRING CARRIER LEVER PIN SAFETY SPRING SAFETY SPRING PIN FORE END COVER DOWEL FRONT SIGHT WHITE SCREW MID BEAD SCREW FOREND CAP MAGAZINE REDUCER MAGAZINE TUBE PLUG MAGAZINE TUBE CAP RETAINING PLUNGER MAG TUBE CAP PLUNGER SPRING MAGAZINE TUBE CAP PLUNGER MAGAZINE REDUCE PLUG RETAINING WASHER MAGAZINE SPRING MAGAZINE TUBE FLANGE PISTON ASSY STEEL MAGAZINE TUBE ELASTIC PIN CUT-OFF COVER CARTRIDGE LATCH CARTRIDGE LATCH ASSY WITH ENLARGED HOLD OPEN LEVER PLATE FRONT DROP CARTRIDGE LATCH BODY PIN STOCK RETAINING NUT STOCK RETAINING NUT WASHER PRO TRIGGER GROUP FOR 12GA. SEMIAUTO COCKING HANDLE AMBIDEXTROUS TRIGGER PLATE RETAINING PIN PLATE REAR STOCK WITH KICK OFF PLUS KICK OFF STOCK PISTOL GRIP FOREND STANDARD STOCK

BARREL EXTENSION O-RING

C5D303

BARREL EXTENSION - A400 RIGHT HAND RH DX GA 12 3"

COCKING HANDLE PIN

C59930

SAFETY ELASTIC PIN

C97122

SAFETY ELASTIC PIN 92 96 98 - PIN A400 ACTION LH LEFT HAND GA 12

NOTICE - This item is included in the suggested / recommended parts list for the model - SERIE 92 96 98

FOREND COVER PIN

C59070

FOREND COVER PIN GA 12 GA 20

FORE END COVER SPRING

C59071

FORE END COVER SPRING

FOREND CAP SET SCREW

C59072

FOR INSTALLATION WE RECCOMEND YOU TO ADDRESS TO A QUALIFIED GUNSMITH

NOT AVAILABLE

75503

CARTRIDGE LATCH WITH HOLD OPEN

C5G371

CARTRIDGE LATCH WITH HOLD OPEN GA 12 3" AND 3.5" SERIE A400

SHOCK ABSORBER

C5E281

SHOCK ABSORBER - A400 XCEL MY20 GA 12

INSERT SOFT RUBBER FOR STOCK WITH KICK OFF PLUS

C5J059

INSERT SOFT RUBBER FOR STOCK WITH KICK OFF PLUS A400 UPLAND GA 12

Fits only wood stocks with kick-off mega

PLATE REAR STOCK WITH KICK OFF PLUS

C5J081

PLATE REAR STOCK WITH KICK OFF PLUS - A400 UPLAND GA 12

PRO ELEVATOR FOR SEMIAUTO

C7C940

PRO ELEVATOR FOR SEMIAUTO 76mm / 3.0" CHAMBER 12 GAUGE

Unprecedented speed and ease of reloading thanks to this elevator derived from the world of competitions that remains in the "raised" position when the shotgun is armed, allowing you to insert new cartridges into the magazine much faster, either individually or in dual/ quad load mode, and while eliminating the risk of "thumb bites"

"Short" version of the model introduced with the 1301 Comp PRO, this elevator maintains all the functions and makes them available for all shotguns that have a shorter elevator as standard

Compatibility

All Beretta semiautomatic shotguns with elevator for 76mm / 3.0 inches cartridges in 12 gauge that are equipped as standard with item #C5D552 (or the corresponding trigger group #C8A275 or #C89785), such as:

1301 Tactical

A400 Upland

A400 Xcel

A400 Novator

A400 Xplor

A400 Lite

A400 Ultralite

A300 Outlander

Warning: Not compatible for 1301 Comp and 1301 Comp PRO shotguns, for these the corresponding item is #C7C121

ELASTIC PIN

C97093

ELASTIC PIN 2.5 X 20 690 695

NOTICE - This item is included in the suggested / recommended parts list for the model - A400 UPLAND and A400 XPLOR UNICO and SERIE 680 and SILVER PIGEON I (SP1) MY19

HAMMER SPRING GUIDE

C5B992

HAMMER SPRING GUIDE 12 GA A400

STOP PIN

C5D838

SPRING STOP

C90094

SPRING STOP SEMIAUTO AND OVER AND UNDERS VARIOUS VERSIONS

Fits 695 A400

NOTICE - This item is included in the suggested / recommended parts list for the model - A400 UPLAND and A400 XPLOR UNICO

HAMMER PIN

C92213

HAMMER PIN

FORE END COVER DOWEL

C59072

FOR INSTALLATION WE RECCOMEND YOU TO ADDRESS TO A QUALIFIED GUNSMITH

MAGAZINE TUBE FLANGE

C5B602

MAGAZINE TUBE FLANGE - AL391 A400 GA 12

This cod replaced cod C59592

COVER CARTRIDGE LATCH

C5H273

COVER CARTRIDGE LATCH 1301 TACTICAL GA 12

Fits A400 Xtreme my 2018, 1301 Tactical colored, 1301 Com PRO

CARTRIDGE LATCH ASSY WITH ENLARGED HOLD OPEN LEVER

C8C567

CARTRIDGE LATCH ASSY WITH ENLARGED HOLD OPEN LEVER FOR 1301 3" AND A400 3"

WITH INTEGRAL HOLD OPEN LEVER

GA 12 3"

PLATE REAR STOCK WITH KICK OFF PLUS

C5J081

PLATE REAR STOCK WITH KICK OFF PLUS - A400 UPLAND GA 12
